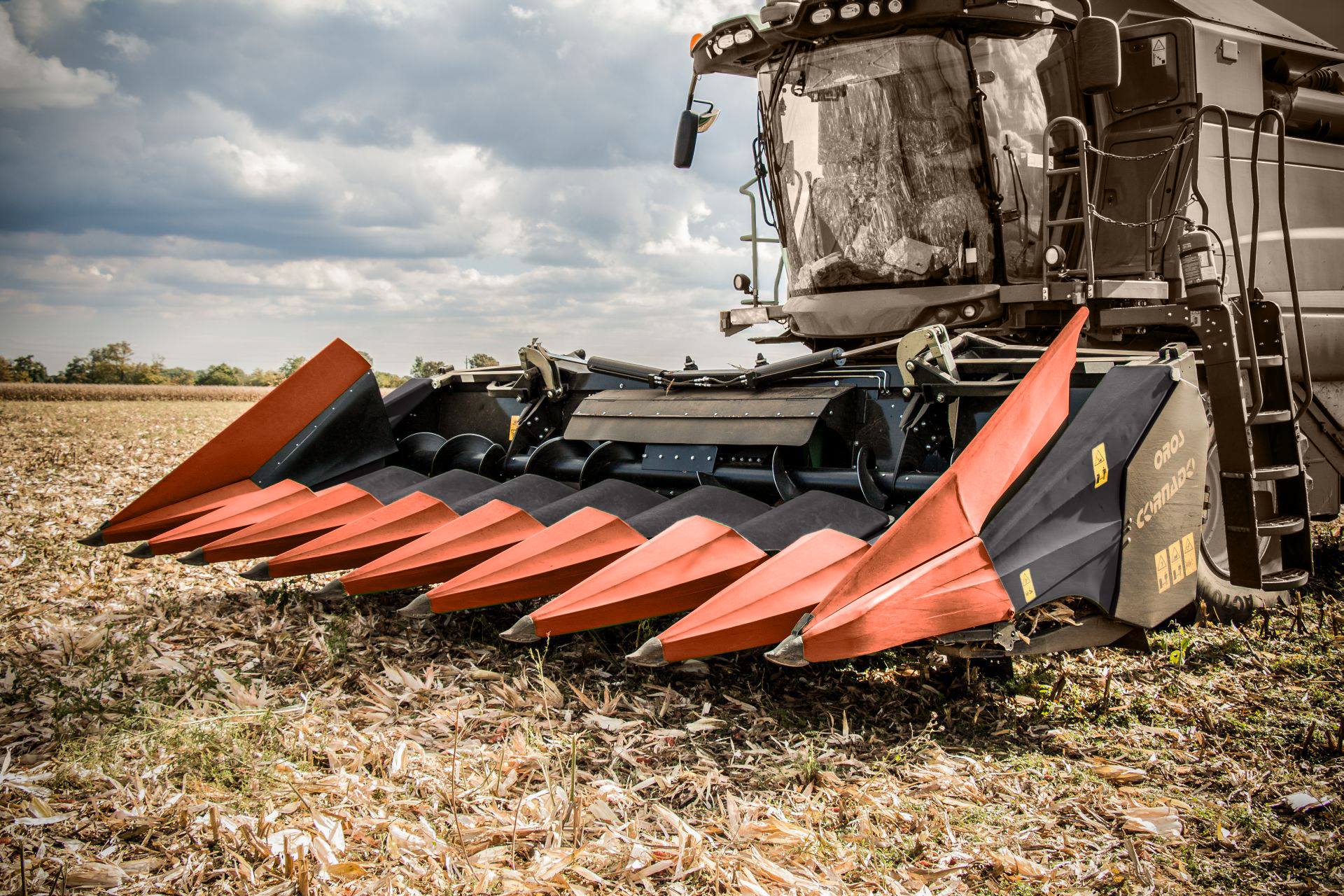

OROS CORNADO harvesting headers

Cornado
GET A QUOTE

OROS CORNADO ADVANTAGES

  • Outstanding chopping performance
  • Snapping rolls with knives and ribs
  • Low fuel consumption
  • High harvesting speed up to 15 km/h
  • Aluminium gearboxes, automotive quality
  • Durable chopper knives
  • PTO drive
  • Hydraulic snapping plate adjustment
  • For any combine type
  • 3 years warranty

OPTIONS

STUBBLE STOMPERS
AUTOMATIC HEADER HEIGHT CONTROL
ROTARY END DIVIDER
AUTOPILOT SYSTEM
STUBBLE LIGHT
PROTECTION NET
SIDE EXTENSIONS
SUNFLOWER KIT
EAR CATCHER
previous arrow
next arrow


Specifications

Type Operational size (mm) Shipping size (mm) Mass (kg)
Model Rows Frame type Row distance (cm) Width Length Height Width Length Height
CORNADO 6+CHOP 6 fixed 70 4390 2968 1214 1214 4390 2351.5 2250
CORNADO 6+CHOP 6 fixed 76.2 4700 2968 1214 1214 4700 2351.5 2350
CORNADO 4+2+CHOP 6 foldable 70 4390 2968 1214 1214 4390 2351.5 2600
CORNADO 4+2+CHOP 6 foldable 76.2 4700 2968 1214 1214 4700 2351.5 2700
CORNADO 4+2+CHOP 6 foldable 80 4890 2968 1214 1214 4890 2351.5 2800
CORNADO 8+CHOP 8 fixed 50.8 4446 2968 1214 1214 4446 2351.5 2500
CORNADO 8+CHOP 8 fixed 56 4810 2968 1214 1214 4810 2351.5 2600
CORNADO 8+CHOP 8 fixed 70 5790 2968 1214 1214 5790 2351.5 2850
CORNADO 8+CHOP 8 fixed 76.2 6224 2968 1214 1214 6224 2351.5 2850
CORNADO 4+2x2+CHOP 8 foldable 70 5790 2968 1214 1214 5790 2351.5 3200
CORNADO 4+2x2+CHOP 8 foldable 76.2 6224 2968 1214 1214 6224 2351.5 3250
CORNADO 4+2x2+CHOP 8 foldable 80 6490 2968 1214 1214 6490 2351.5 3318
CORNADO 5+2x2+CHOP 9 foldable 60 5690 2968 1214 1214 5690 2351.5 3304
CORNADO 5+2x2+CHOP 9 foldable 76.2 6986 2968 1214 1214 6986 2351.5 3450
CORNADO 12+CHOP 12 fixed 50.8 6478 2968 1214 1214 6478 2351.5 3570
CORNADO 12+CHOP 12 fixed 56 7050 2968 1214 1214 7050 2351.5 3590
CORNADO 12+CHOP 12 fixed 70 8590 2968 1214 1214 8590 2351.5 3950
CORNADO 12+CHOP 12 fixed 76.2 9272 2968 1214 1214 9272 2351.5 4100

PLASTIC SNOUTS ARE AVAILABLE ON ALL MAJOR COMBINE COLORS. PLASTIC SHIELDS AND SIDE SHIELDS ARE BLACK!

CLAAS
JOHN DEERE
MF
NEW HOLLAND
FEHÉR
DEUTZ FAHR ZÖLD
CASE PIROS
CLAAS
JOHN DEERE
MF
NEW HOLLAND
FEHÉR
DEUTZ FAHR ZÖLD
CASE PIROS



To carry the OROS headers we offer the OROS TR  transport trailers.
